AP-LM/LMS Series

AP-LM/LMS Series

Products info

댓글 삭제

1,000 ~ 2,000 kg, 2,000 ~ 3,000 kg, 3,000 kg ~M12×1.75P, M16×2.0P, M20×2.5P, M24×3.0P

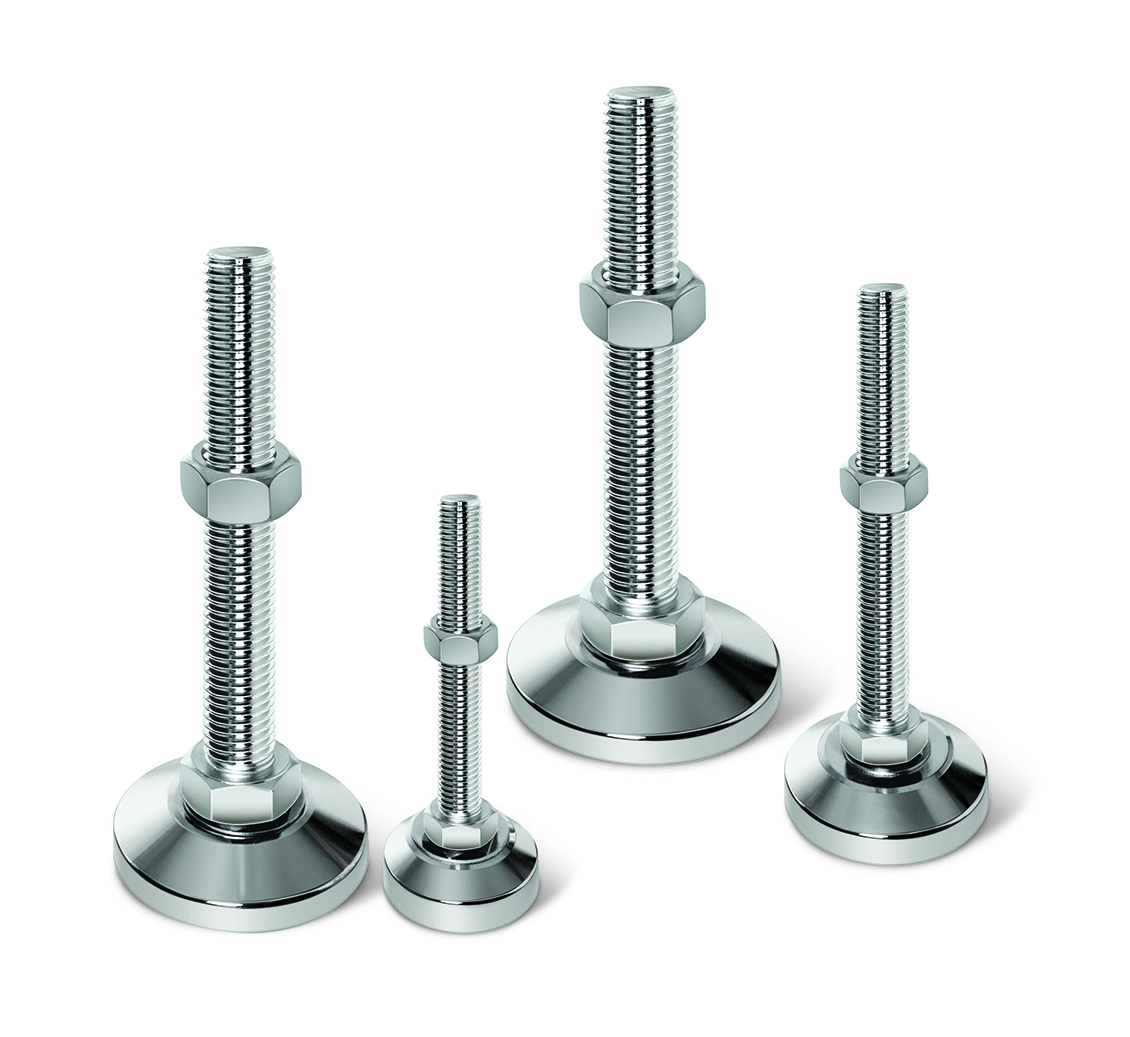

Click on the picture to enlarge it.

AP-LM/AP-LMS Series

· Midium & heavy duty purpose with mechnical working after forging

APPLICATION

Conveyor, Construction machine, Automatic facilities

· File download

INQUIRY

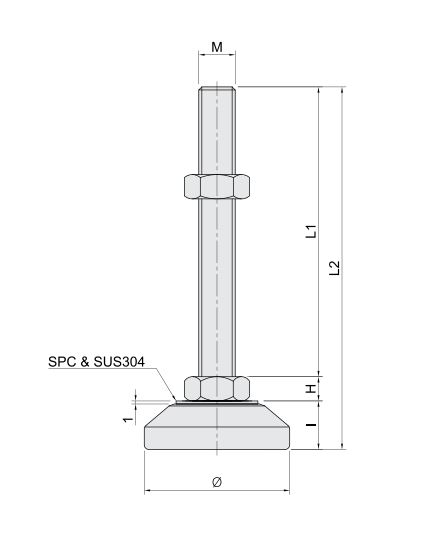

Drawing

MATERIAL & TREATMENT INFORMATION

MODEL	DIMENSION(mm)						MATERIALS		Load capacity (kg/4EA)	Treatments
MODEL	Ø	L1	L2	H	I	M	Bolt & Nut	Cup	Load capacity (kg/4EA)	Treatments
LM-12 LMS-12	Ø43	60 90 90 120 150	84 114 144 174	8	16	M12×1.75	SWRCH10A & SUS304	SM45C & SUS304	1000	Ni
LM-12 LMS-12	Ø60	60 90 120 150	86 116 146 176	8	18	M12×1.75	SWRCH10A & SUS304	SM45C & SUS304	1000	Ni
LM-16 LMS-16	Ø60	80 100 130 150 180 200	108 128 158 178 208 228	10	18	M16×2.0	SWRCH10A & SUS304	SM45C & SUS304	2000	Ni
LM-16 LMS-16	Ø73	80 100 130 150 180 200	108 128 158 178 208 228	10	18	M16×2.0	SWRCH10A & SUS304	SM45C & SUS304	2000	Ni
LM-20 LMS-20	Ø73	100 130 150 180 200	131 161 181 211 231	13	18	M20×2.5	SWRCH10A & SUS304	SM45C & SUS304	3000	Ni
LM-24 LMS-24	Ø88	100 130 150 180 200	133 163 183 213 233	15	18	M24×3.0	SWRCH10A & SUS304	SM45C & SUS304	4000	Ni
