AP-LMR/LMSR Series

AP-LMR/LMSR Series

Products info

댓글 삭제

1,000 ~ 2,000 kg, 2,000 ~ 3,000 kg, 3,000 kg ~M12×1.75P, M16×2.0P, M20×2.5P, M24×3.0P

Click on the picture to enlarge it.

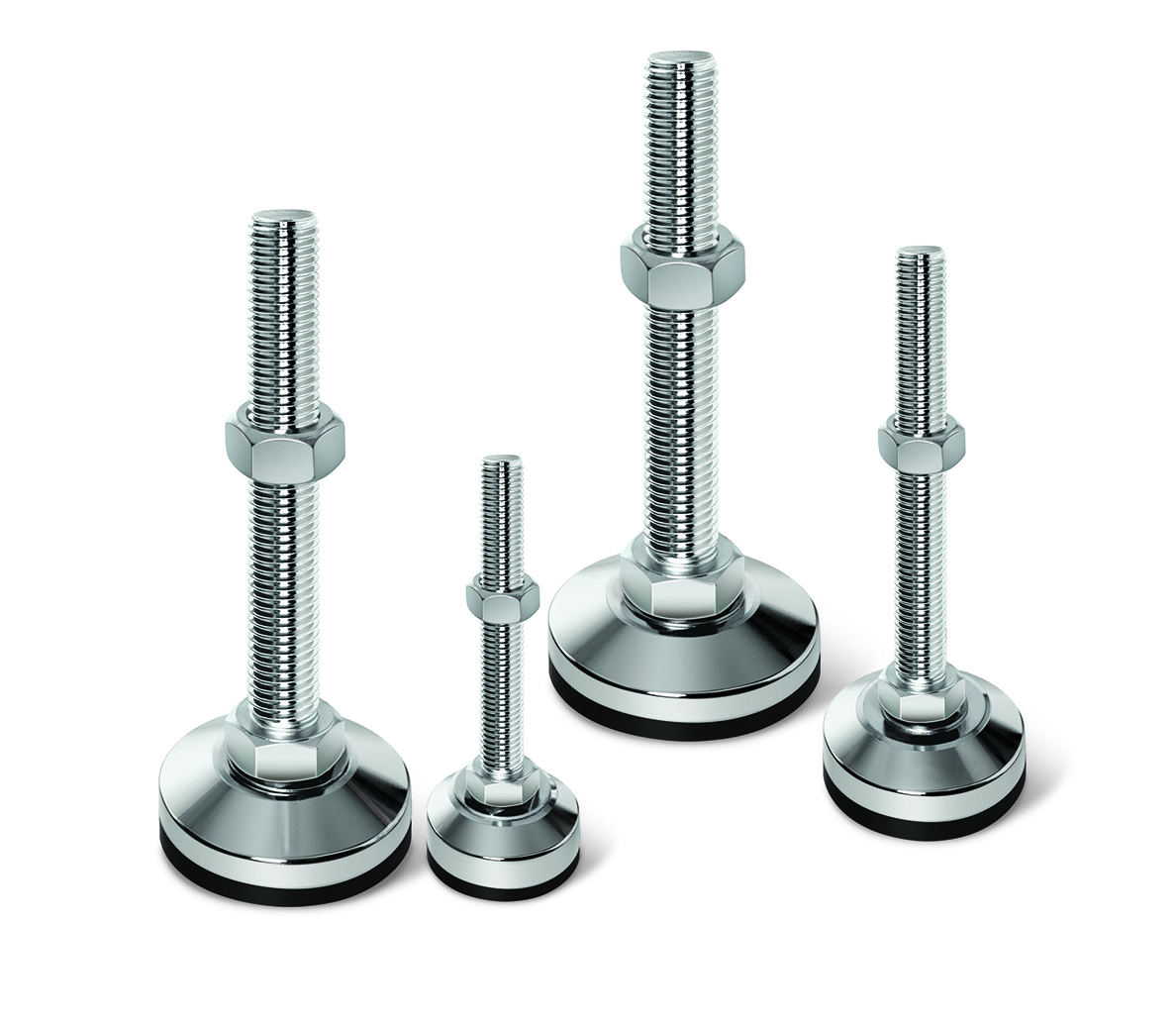

AP-LMR/AP-LMSR series

· Midium & heavy duty purpose with mechnical working after forging, anti-vibration, anti-slip

APPLICATION

Conveyor, Construction machine, Automatic facilities

· File download

INQUIRY

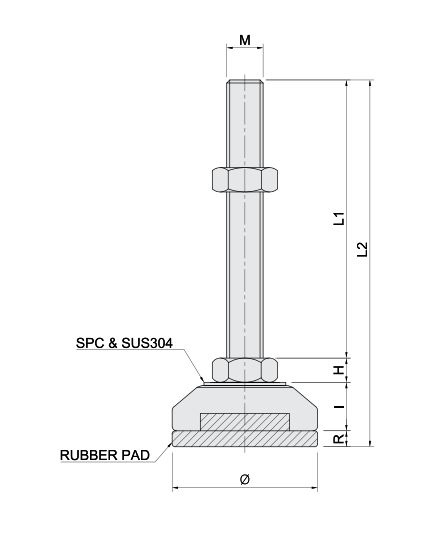

Drawing

MATERIAL & TREATMENT INFORMATION

MODEL	DIMENSION(mm)							MATERIALS			Load capacity (kg/4EA)	Treatments
MODEL	Ø	L1	L2	H	I	R	M	Bolt & Nut	Cup	Pad	Load capacity (kg/4EA)	Treatments
LMR-12 LMRS-12	Ø43	60 90 120 150	89 119 149 179	8	16	5	M12×1.75	SWRCH10A & SUS304	SM45C & SUS304	NBR	1000	Ni
LMR-12 LMRS-12	Ø60	60 90 120 150	91 121 151 181	8	18	5	M12×1.75	SWRCH10A & SUS304	SM45C & SUS304	NBR	1000	Ni
LMR-16 LMRS-16	Ø60	80 100 130 150 180 200	113 133 163 183 213 233	10	18	5	M16×2.0	SWRCH10A & SUS304	SM45C & SUS304	NBR	2000	Ni
LMR-16 LMRS-16	Ø73	80 100 130 150 180 200	115 135 165 185 215 235	10	18	7	M16×2.0	SWRCH10A & SUS304	SM45C & SUS304	NBR	2000	Ni
LMR-20 LMRS-20	Ø73	100 130 150 180 200	138 168 188 218 238	13	18	7	M20×2.5	SWRCH10A & SUS304	SM45C & SUS304	NBR	3000	Ni
LMR-24 LMRS-24	Ø88	100 130 150 180 200	140 170 190 220 240	15	18	7	M20×2.5	SWRCH10A & SUS304	SM45C & SUS304	NBR	4000	Ni
