AP-LV/LVS Series

AP-LV/LVS Series

Products info

댓글 삭제

0 ~ 250 kg, 250 ~ 500 kg, 500 ~ 1,000 kg, 1,000 ~ 2,000 kgM6×1.0P, M8×1.25P, M10×1.5P, M12×1.75P, M16×2.0P, M20×2.5P

Click on the picture to enlarge it.

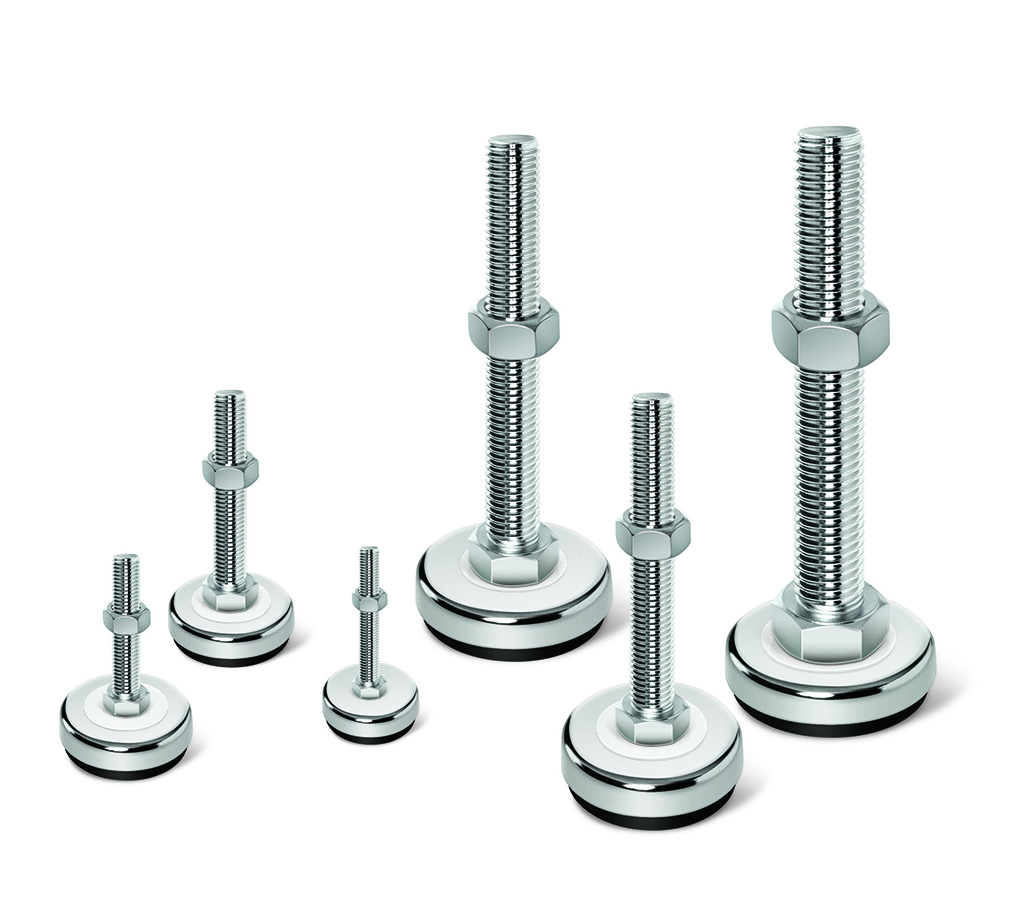

AP-LV/AP-LVS series

· anti-slip

APPLICATION

Conveyor, Construction machine, Automatic facilities

· File download

INQUIRY

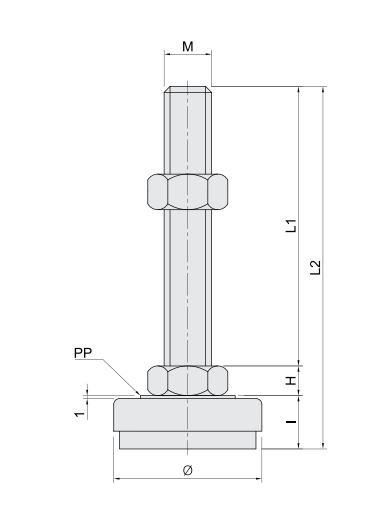

Drawing

MATERIAL & TREATMENT INFORMATION

MODEL	DIMENSION(mm)						MATERIALS			Load capacity (kg/4EA)	Treatments
MODEL	Ø	L1	L2	H	I	M	Bolt & Nut	Cup	Pad	Load capacity (kg/4EA)	Treatments
LV-6 LVS-6	Ø28	40	55.5	4	11.5	M6×1.0	SWRCH10A & SUS304	SPC(2t) & SUS304 (2t)	PVC	100	Ni
LV-8 LVS-8	Ø38	40 80	58 98	5.5	13	M8×1.25	SWRCH10A & SUS304	SPC(2t) & SUS304 (2t)	PVC	200	Ni
LV-10 LVS-10	Ø38	60 100	80 120	7	13	M10×1.5	SWRCH10A & SUS304	SPC(2t) & SUS304 (2t)	PVC	300	Ni
LV-12 LVS-12	Ø50	60 90 120 150	86 116 146 176	8	18	M12×1.75	SWRCH10A & SUS304	SPC(2t) & SUS304 (2t)	PVC	500	Ni
LV-16 LVS-16	Ø50	80 100 130 150 180 200	108 128 158 178 208 228	10	18	M16×2.0	SWRCH10A & SUS304	SPC(2t) & SUS304 (2t)	PVC	800	Ni
LV-16 LVS-16	Ø60	80 100 130 150 180 200	108 128 158 178 208 228	10	18	M16×2.0	SWRCH10A & SUS304	SPC(2t) & SUS304 (2t)	PVC	800	Ni
LV-20 LVS-20	Ø60	100 130 150 180 200	131 161 181 211 231	13	18	M20×2.5	SWRCH10A & SUS304	SPC(2t) & SUS304 (2t)	PVC	1000	Ni
